• • Connects directly to AC Power
  • Various CCT available: 2700/3000/3500/4000/5000/5700/6500K
  • CRI: 90/80
  • Macadam 5 steps color bin
  • Solutions for Down light / Ceiling light
  • AC line voltage 230V input directly
  • Power factor higher than 0.9
  • TRIAC dimmable/Switch table white








  Absolute maximum rating at 25℃

  P/N	Size	Input	Power	PF	Flux	Efficiency	CCT	CRI	Dimming
  	mm	Vac	W	-	Lm	Lm/W	K	-	-

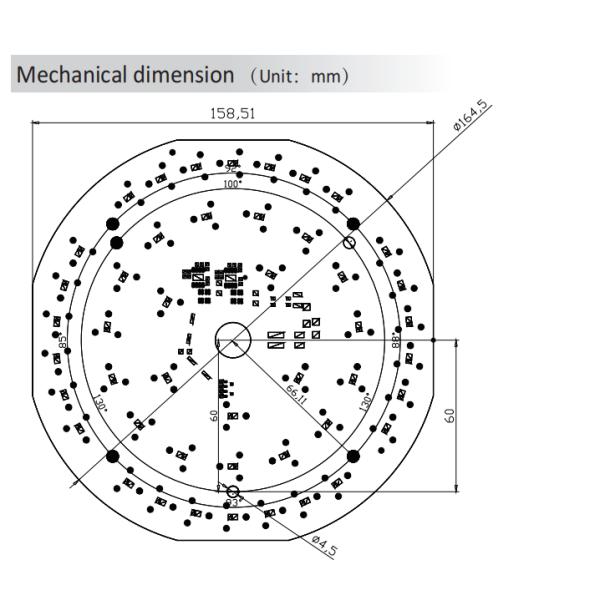

  RL-HMD164A4601H018-827FF	Ø164	230	18	0.8	2070	115	2700	80	TRIAC
  RL-HMD164A4601H018-830FF	Ø164	230	18	0.8	2160	120	3000	80	TRIAC
  RL-HMD164A4601H018-840FF	Ø164	230	18	0.8	2250	125	4000	80	TRIAC
  RL-HMD164A4601H018-850FF	Ø164	230	18	0.8	2225	125	5000	80	TRIAC
  RL-HMD164A4601H018-865FF	Ø164	230	18	0.8	2225	125	6500	80	TRIAC

  Optical-Electrical Characteristics at 25℃

  Input	200-240Vac
  Frequency	50/60Hz
  Rated power	Typical power(±10% tolerance)
  PF	>0.90
  Protection	IP20
  Surge level	2.5KV
  Hi-pot	1.5KVac
  Storage temperature	-30-85℃
  Operation temperature	-30-80℃(Ts ofled components)
  Beam Angle	120 deg
  Flicker index	<5%




  Safety Information

  1. The LED module and all its components shall not be subjected to mechanical stress.
  2. Correct electrical polarity, or not module may be damaged.
  3. Ensure the power supply is suitable for the total load.
  4. Electrostatic Discharge (ESD) precautions shall be incorporated when handling or installing the module.
  5. Installation of LED modules shall be made refering to all applicable electrical and safety standards.
  6. Suitable for luminaire of protection class 1, grounding is mandatory to comply with safety standards.
  7. The AC light engine needs to be mounted to a heat sink with a thermal interface material between them.
  8. It is better to use the AC led module with safety cover.
  9. Modules may be hot to the touch. Use caution when handling.
